ZC-2006P PoE Switch 4 POE ports 1 GE SFP+5*GE RJ45 Switching capacity 12G DC or AC

To fulfill the demand of High Power PoE for network applications with Gigabit transmission, ZC-S2006P PoE Gigabit Ethernet Switch is an ideal solution. Each 10/100/1000Mbps port of the ZC-2006P features IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) that combine up to 65-watt PoE budget on the whole system, It is designed specifically to satisfy the growing demand of higher power consuming network PD(powered devices) such as PTZ (Pan, Tilt & Zoom) / speed dome network cameras, multi-channel (802.11a/b/g/n) wireless LAN access points and other network devices by doubling PoE power, more than the current conventional 802.3af PoE.
All RJ45 copper interfaces of the ZC-2006P support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. 1extra 1.25Gbps SC interface can be used for uplink.

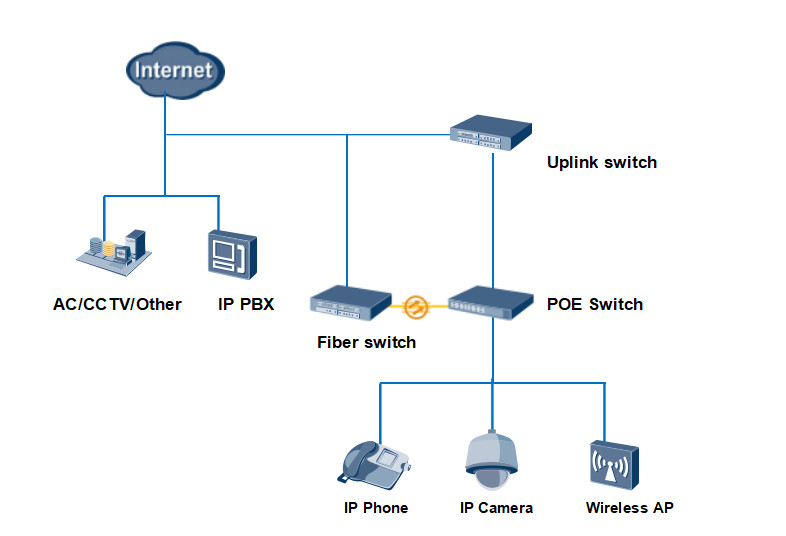

Typical applications please refer to following picture

Features

. Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
. 4-Port 10/100/1000Mbps supports 52V DC power to PoE Powered Device
. 1 RJ45 10/100/1000Mbps for uplink
. 1 1.25Gbps SFP interface for uplink
. Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span PSE
. Up to 4 IEEE 802.3af devices powered
. Supports PoE Power up to 15.4 watts for each PoE port
. Up to 4 IEEE 802.3at devices powered
. Supports PoE Power up to 30 watts for each PoE port
. 65-watt PoE budget
. Auto detects powered device (PD)
. Circuit protection prevents power interference between ports
. Remote power feeding up to 100m
. Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
. Features Store-and-Forward mode with wire-speed filtering and forwarding rates
. IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
. Integrates address look-up engine, supporting 8K absolute MAC addresses
. 2M packet buffer
. 10K Jumbo frame supports at 1000Mbps duplex mode
. IEEE 802.1QVLAN packet transparency support
. Automatic address learning and address aging
. Made of metal, desktop size and wall-mount design

Technical Specifications
